Feature

1. High rigidity hom qauv, tsim raws li qhov yuav tsum tau ntawm heavy-duty presses, nrog zoo heev tsis kam mus rau hnyav-duty stamping, me me lub cev deformation, haum rau lub undulating kev hloov ntawm stamping tonnage liab xuas nrig ntaus khoom.
2. Yim-sided qhia rail, zoo tshem tawm eccentric load txav, siab guiding raug, zoo straightness, ntev kev pab cuam lub neej ntawm pwm, zoo concentricity ntawm stretching khoom.
3. Kaw gearbox, zoo heev txo suab nrov, iav soaking nyob rau hauv cov roj, ntev kev pab cuam lub neej ntawm iav.
4. Kaw pneumatic clutch, rhiab heev, kev koom tes ruaj khov, lub kaum sab xis nres, tuaj yeem nres ntawm txhua lub kaum ntse ntse, yooj yim pwm installation, nyab xeeb.
5. Cov khoom siv tshwj xeeb tsim raws li qhov yuav tsum tau ua ntawm lub qhov ntswg tooj liab muaj qhov zoo ntawm kev ua haujlwm siab hauv kev siv phau ntawv tsis siv neeg kab ntau lawm.

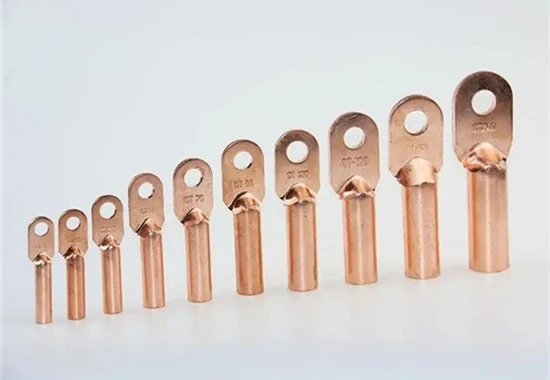

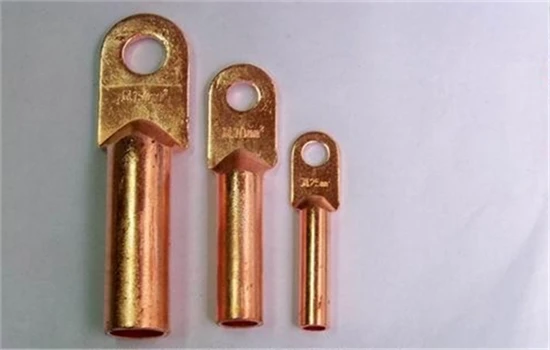

Stamping khoom 1

Stamping khoom 2

Stamping khoom 3

Stamping khoom 4

Stamping khoom 5

Stamping khoom 6

Lub npe	Chav tsev	DPS-125W		DPS-160W		DPS-200W
Nominal zog	KN	1250		1600		2000
Hom		V	H	V	H	V	H
Slider stroke	mm	230	160	250	200	250	200
Nominal zog stroke	mm	8	4	10	6	10	6
Tus naj npawb ntawm strokes (qhov ceev tsis tu ncua)	s.p.m	45	70	40	60	40	60
Qhov siab kawg tuag	mm	320	350	325	350	365	390
Tuag qhov siab kho	mm	80		100		110
Tsawg worktable loj	mm	750×700×105		800×750×115		800×800×115
Slider hauv qab	mm	750×450		780×500		800×650
Worktable center qhov	mm	Ø250		Ø320		Ø320
Tuag tuav qhov	mm	Ø75		Ø75		Ø75
Main lub cev muaj zog	KW × P	11×4		18.5×4		18.5×4
Rub tus pas nrig loj	mm	M30×550		M30×620		M36×600
Cua siab siv	MPa	0.5-0.7		0.5-0.7		0.5-0.7
Punch (pem hauv ntej thiab nram qab × sab laug thiab sab xis × qhov siab)	mm	1742×1623×3400		2030×1886×3845		2290×1891×4032
Punch hnyav	Toj	Kwv yees li 10		Kwv yees li 14		Kwv yees li 16

Lub npe	Chav tsev	DPS-250W		DPS-315W		DPS-400W
Nominal zog	KN	2500		3150		4000
Hom		V	H	V	H	V	H
Slider stroke	mm	250	200	250	200	250	200
Nominal zog stroke	mm	15	8	15	8	15	8
Tus naj npawb ntawm strokes (qhov ceev tsis tu ncua)	s.p.m	40	60	40	60	40	60
Qhov siab kawg tuag	mm	400	425	420	445	425	445
Tuag qhov siab kho	mm	120		120		150
Tsawg worktable loj	mm	900×850×135		950×900×155		1100×1000×175
Slider hauv qab	mm	920×750		970×800		1100×800
Worktable center qhov	mm	Ø320		Ø320		Ø320
Tuag tuav qhov	mm	Ø75		Ø75		Ø75
Main lub cev muaj zog	KW × P	22×4		30×4		45×4
Rub tus pas nrig loj	mm	M36×650		M36×700		M36×900
Cua siab siv	MPa	0.5-0.7		0.5-0.7		0.5-0.7
Punch (pem hauv ntej thiab nram qab × sab laug thiab sab xis × qhov siab)	mm	2798×2086×4150		2819×2156×4670		3259×2226×5027
Punch hnyav	Toj	Kwv yees li. 19		Kwv yees 25		Kwv yees 32

Lub npe	Chav tsev	DPS-500W
Nominal zog	KN	5000
Hom		V	H
Slider stroke	mm	250	200
Nominal zog stroke	mm	15	8
Tus naj npawb ntawm strokes (qhov ceev tsis tu ncua)	s.p.m	40	55
Qhov siab kawg tuag	mm	450	475
Tuag qhov siab kho	mm	150
Tsawg worktable loj	mm	1200×1100×195
Slider hauv qab	mm	1200×900
Worktable center qhov	mm	Ø350
Tuag tuav qhov	mm	Ø100
Main lub cev muaj zog	KW × P	55×4
Rub tus pas nrig loj	mm	M42×950
Cua siab siv	MPa	0.5-0.7
Punch (pem hauv ntej thiab nram qab × sab laug thiab sab xis × qhov siab)	mm	3527×2630×5600
Punch hnyav	Toj	Kwv yees 38

Standard Accessories	●
Pneumatic clutch	●
Kov npo	●
Preload txee, pre-break txee	●
Hydraulic overload tiv thaiv ntaus ntawv	●
Misfeed detection ntaus ntawv	●
Lub qhov hluav taws xob	●
Electric roj lubrication ntaus ntawv	●
Hluav taws xob swb hloov khoom siv	●
Electronic pwm qhov siab qhov taw qhia	●
Swb thiab pwm ntsuas cov cuab yeej	●
Electronic rotary cam hloov	●
Crankshaft angle qhia	●
Inverter	●
Txee	●
Cua qhov chaw connector	●
Thib ob-theem tiv thaiv ntaus ntawv	●
Phau ntawv qhia	●

Standard Accessories
Pneumatic tuag pad ntaus ntawv	○
Ko taw hloov	○
Slider Upper punching ntaus ntawv	○
Anti-vibration ko taw	○
Photoelectric tiv thaiv ntaus ntawv	○
Feeder (cua, mechanical thiab NC hom)	○
Khib	○
Leveler	○
Neeg hlau	○
Pwm teeb pom kev zoo	○

Taw qhia

Hydraulic xovxwm tshuab yog dav siv nyob rau hauv ntau yam kev lag luam teb kom zoo ua hauj lwm hnyav. Los ntawm kev siv lub zog me me, kaw cov kua hauv lub tog raj kheej hydraulic tsim kom muaj zog compression loj.

Tsim los ntawm Yauxej Bramah hauv xyoo 1795, lub tshuab xovxwm hydraulic siv lub zog hydraulic es tsis txhob siv lub tshuab ua haujlwm. Nws nta adjustable tuag qhov chaw, stroke ntev, thiab thov siab. Cov tshuab no tuaj yeem ua ntau yam khoom siv, suav nrog hlau, yas, ntoo, thiab roj hmab. Daim ntawv thov ntawm hydraulic xovxwm muaj xws li hlau sib sau, molding, dabtsi yog khoov, forging, daim ntawv kos duab, txias extrusion, straightening, flanging, stamping, thiab hmoov metallurgy.

Lub tshuab xovxwm hydraulic feem ntau yog siv rau hauv kev tsim khoom siv hluav taws xob, tsheb qhov chaw, ntsia hlau, riam, thiab cov khoom siv dav hlau. Tsab ntawv xov xwm no los ntawm Ntiaj Teb Xov Xwm muab cov lus qhia dav dav ntawm lub ntsiab lus, keeb kwm, cov khoom siv, hom, cov qauv kev ua haujlwm, thiab kev siv cov tshuab hydraulic xovxwm.
