Hauj lwm lawm

Kev tsis

1. Cov ntaub ntawv xuas nrig Forging tau nruab nrog lub xauv tsau rau 6 sab kaum ob sab lus qhia rau 300t thiab saum toj no.

2. Lub tshuab khawm folding muaj qhov sib txawv qis thiab tsis muaj suab nrov.

3. Lub cev siab nruj, muaj kev cuam tshuam me me thaum lub sijhawm ua haujlwm, thiab paub txog cov tshuab hluav taws xob siab.

4. Kev siv ntawm kev ua haujlwm yooj yim.

5. Lub neej ntawm pwm tau txhim kho ntau.

6. Lub suab nrov thaum lub sijhawm txiav yog tsawg.

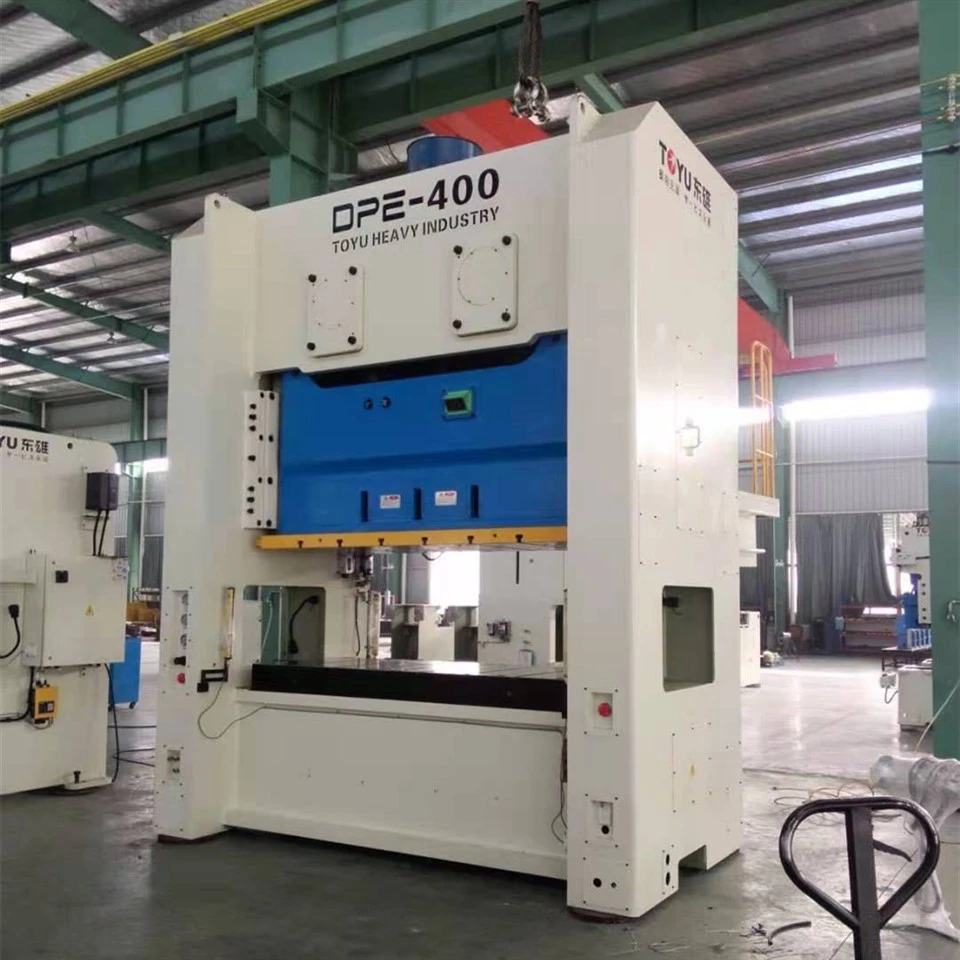

7. Forging Punch Tshuab Tag nrho cov ntse plc tswj, hluav taws xob pwm kev hloov kho, muaj ntau dhau kev tiv thaiv hydraulic; Kuj tsis paub meej zaus hloov kho thiab siv hluav taws xob txiav tawm cov khoom siv tswb; Hluav Taws Xob Cov Duab Dus Display nrog lub siab nco ua haujlwm, yeem Hydraulic Xauv thiab Lifting Tsis Siv Neeg Ntaus Ntawv.

Stamping khoom 1

Stamping khoom 2

Stamping khoom 3

Stamping Khoom 4

Stamping Khoom 5

Stamping khoom 6

Stamping khoom 7

Yam		DPE -160		DPE -200
Tus qauv		V	H	V	H
Lub peev xwm	Lub hau	160		200
Ntsej Tonnage point	lub hli	6	3	6	3
Stroke ib feeb	s.p.m	30~55	40~85	20~50	35~70
Mob stroke ntev	lub hli	180	130	250	150
Tuag qhov siab	lub hli	450	400	500	450
Kev Xoom Hloov	lub hli	100		120
Slide thaj chaw	lub hli	1600×650		1990×750
Thaj Tsam Bolster	lub hli	1800×760×150		2200×940×170
Lub cev muaj zog tseem ceeb	kw.p	15×4		18.5×4
Xaub Siv Ntaus Ntawv		Hluav taws xob tsav tsheb
Cua Siab	kg / cm²	5-6		5-6
Presses Precision		CNS (JLS) 1class

Yam		DPE -250		DPE -300
Tus qauv		V	H	V	H
Lub peev xwm	Lub hau	250		300
Ntsej Tonnage point	lub hli	7	3	7	3
Stroke ib feeb	s.p.m	20~40	30~60	20~40	30~50
Mob stroke ntev	lub hli	280	170	300	170
Tuag qhov siab	lub hli	550	450	550	450
Kev Xoom Hloov	lub hli	120		120
Slide thaj chaw	lub hli	22300×900		2500×900
Thaj Tsam Bolster	lub hli	2500×1000×170		2500×1000×190
Lub cev muaj zog tseem ceeb	kw.p	22×4		30×4
Xaub Siv Ntaus Ntawv		Hluav taws xob tsav tsheb
Cua Siab	kg / cm²	5-6		5-6
Presses Precision		CNS (JLS) 1class

Yam		DPE -400		DPE -500
Tus qauv		V	H	V	H
Lub peev xwm	Lub hau	400		500
Ntsej Tonnage point	lub hli	7	3	9	5
Stroke ib feeb	s.p.m	20~30	20~40	20~25	20~35
Mob stroke ntev	lub hli	300	170	300	170
Tuag qhov siab	lub hli	550	450	650	550
Kev Xoom Hloov	lub hli	150		150
Slide thaj chaw	lub hli	2700×1000		3000×1100
Thaj Tsam Bolster	lub hli	2700×1000×200		3200×1200×200
Lub cev muaj zog tseem ceeb	kw.p	37.5×4		45×4
Xaub Siv Ntaus Ntawv		Hluav taws xob tsav tsheb
Cua Siab	kg / cm²	5-6		5-6
Presses Precision		CNS (JLS) 1class

Yam		DPE -600
Tus qauv		V	H
Lub peev xwm	Lub hau	600
Ntsej Tonnage point	lub hli	10	5
Stroke ib feeb	s.p.m	20~25	20~35
Mob stroke ntev	lub hli	350	200
Tuag qhov siab	lub hli	650	550
Kev Xoom Hloov	lub hli	150
Slide thaj chaw	lub hli	3300×1300
Thaj Tsam Bolster	lub hli	3650×1500×200
Lub cev muaj zog tseem ceeb	kw.p	50×4
Xaub Siv Ntaus Ntawv		Hluav taws xob tsav tsheb
Cua Siab	kg / cm²	5-6
Presses Precision		CNS (JLS) 1class

Txuj Accessories	●
Hydraulic dhau-thauj cov neeg tiv thaiv	●
Zaus inverter	●
Xaub Siv Ntaus Ntawv	●
Tuag Txheem Heigh	●
Tshuav khoom	●
Teb Cam Hloov	●
Crank lub kaum sab xis taw qhia	●
Kev pab fais fab	●
Lub Txawj Ntse Cua Txias	●
Cua Sov Recepatacle	●
Cov txee khaws cia	●
Cov txee khaws cia	●
Tawm tsam cov cuab yeej muaj kev nyab xeeb tshaj plaws	●
Lub Thawv Tool Box	●
Kev Tuav Haujlwm Nruab Nrab	●

Txuj Accessories	○
Hluav taws xob tsis siv hluav taws xob	○
Pneumatic Tuag Cusion Ntaus	○
Ko Taw Hloov	○
Ceev Ceev Siab Ntaus Ntaus (Tuag Lifter, clamp thiab Tuag Caj Hloov Hom Hom)	○
Swb Knock-tawm ntaus ntawv	○
Misfeed Nrhiav Kev Pom Zoo	○
Anti Kev Co Xovxwm Mount	○
Diam duab cov khoom siv hluav taws xob	○
Tus pub mov	○
Muaj cuab xyuam nyiaj	○
Qib	○
Machanism tes	○
Tuag Chav Teeb	○

Dab tsi yog qhov tseem ceeb cuam tshuam rau rebound?

1. Cov khoom siv tshuab cov khoom siv ntawm cov khoom siv xa mus rau lawv cov khoom siv shear, tensile lub zog, tawm taw tes, thiab elongation. Vim muaj ntau hom, qib, thiab cov ntsiab lus ntawm cov ntaub ntawv, lawv cov khoom siv mechanical, lawv cov neeg kho mob kuj sib txawv. Cov ntaub ntawv hlau tuaj yeem faib ua ob hom: tsis muaj hlau thiab cov hlau ferrous.

Cov hlau cov hlau dub muaj xws li cov hlau ua hluav taws xob, cov hlau sib xyaw ua ke, siv cov roj caruminium, xeb, xeb txhuas, xeb, xeb txhuas, xeb Hom tooj liab muaj xws li tooj liab liab, tooj dag, tooj dag, sillicon manganese bronze, thiab lwm tus, nrog rau titanium alloys.

Cov xeev cov ntaub ntawv suav nrog annealed, unannealed, noronized, tshav kub, annealed txias ua haujlwm tawv tawv tawv tawv tawv, tawv tawv, thiab lwm yam.

Txhawm rau txo cov nqi rov qab, daim ntawv hlau nrog cov khoom sib txuam ntawm cov khoom siv hauv cov neeg kho tshuab.

2. Cov khoom lag luam zoo ntawm cov ntaub ntawv

Qhov tseeb ntawm ntawv tuab, nto zoo, thiab flatness muaj qhov cuam tshuam tseem ceeb rau lub caij nplooj ntoo hlav. Yog hais tias lub siab ntsuas ntawm cov tuab ntawm daim ntawv hlau loj, kev hloov pauv ntawm nws lub kaum ntse ntse ces yuav loj; Lub thinner lub thickness ntawm cov ntawv hlau, ntau dua qhov cuam tshuam rau qhov no. Tsis tas li ntawd, yog tias cov khoom ntawm cov khoom tsis sib xws, ua rau muaj kev tsis txaus siab, thiab muaj kev tsis txaus siab yuav tshwm sim thaum nws muaj kev cuam tshuam loj.

Fais Tsis Muaj Nyias Twj

Hluav taws xob lub thawv

Lub Tes Tsho Tooj Tooj Liab

Lub vijtsam zaub

3. Kev txheeb ze khoov Radius R / Tr: puas khoov pob Hniav vojvoog; T: Tus txheeb ze cuam tshuam rau khoov cov r / t tus nqi ntawm cov khoom tuab, qhov ntau dua cov nqi rov qab. Thaum tus R / T tus nqi yog siab, qib kev deformation yog me me, thiab loj elastic thaj chaw muaj nyob rau hauv nruab nrab ntawm cov khoom hla-seem, uas ua rau muaj tus nqi siab. Yog li ntawd, txhawm rau txo qhov kev cuam tshuam ntawm rov qab, ib qho kev txheeb ze me me khoov yog feem ntau xaiv. Txawm li cas los xij, txoj kev khoov me me me me me me uas tuaj yeem ua rau tawg ntawm cov khoov thiab yuav tsum tau sib npaug.

4. Qhov loj dua tus nqi yog khoov, qhov loj dua deformation tsam, thiab ntau dua cov nqi uas muaj nqi ntawm kev ywj pheej ntawm kev khoov tshuab hluav taws xob.

5. Cov duab ntawm Bent tshooj thiab qhov ntev ntawm qhov ua haujlwm ntawm cov pwm muaj qhov cuam tshuam tseem ceeb ntawm tus nqi rov qab. Piv txwv li, thaum cov txheej txheem los yog, qhov khoov ntawm qhov loj me ntawm U-puab tej zaum yuav hloov vim yog qhov sib txawv ntawm cov xovxwm. Tsis tas li ntawd, kev tsis zoo ntawm cov xovxwm nws tus kheej lossis qhov tsis sib xws ntawm cov xovxwm thiab cov pwm hluav taws xob pwm kuj tseem tuaj yeem ua rau cov qauv thiab qhov loj me.

Feem ntau, thaum lub zog khoov yog me me, tus kaum sab xis rebound yog loj. Nce cov khoom siv quab yuam, qhov tseeb, kev kho ntawm cov band khoov yuav tau ib leeg lossis mus ze xoom txiv rov qab.
