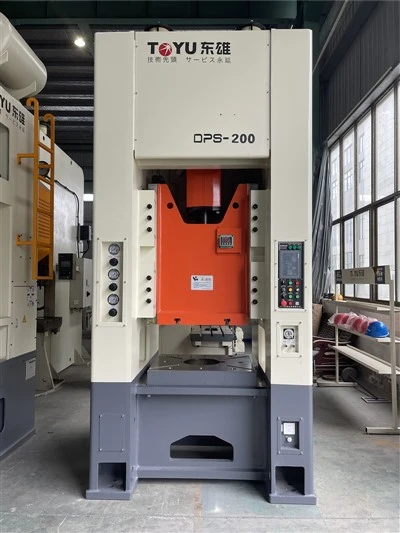

Kaw ib axis high-precision steel ncej xuas nrig ntaus tshuab DPS-W xuas nrig ntaus tshuab series
1. High rigidity hom qauv, tsim raws li qhov yuav tsum tau ntawm heavy-duty presses, muaj zoo heev tiv thaiv hnyav load stamping, me me deformation ntawm lub cev, thiab yog haum rau liab stamping khoom nrog fluctuating stamping tonnage.
2. Yim sab qhia kev tsheb ciav hlau zoo tshem tawm eccentric load txav, nrog kev taw qhia siab, zoo ncaj, ntev pwm kev pab cuam lub neej, thiab zoo concentricity ntawm stretched khoom.
3. Cov gearbox kaw tau txo cov suab nrov, nrog cov iav submerged hauv cov roj thiab lub neej ua haujlwm ntev.
4. Kaw pneumatic clutch, nrog rhiab heev, kev sib koom ua ke du, qhov tseeb nres lub kaum ntse ntse, tuaj yeem nres ntawm txhua lub kaum ntse ntse, yooj yim pwm installation, thiab kev nyab xeeb.
5. Cov cuab yeej tsim tshwj xeeb raws li qhov yuav tsum tau ua ntawm lub qhov ntswg tooj liab muaj qhov zoo ntawm kev ua haujlwm siab hauv kev siv phau ntawv tsis siv neeg ntau lawm kab.
|
Lub npe |
Chav tsev |
DPS-125W |
DPS-160W |
DPS-200W |
|||
|
Nominal zog |
KN |
1250 |
1600 |
2000 |
|||
|
Hom |
V |
H |
V |
H |
V |
H |
|
|
Swb stroke |
mm |
230 |
160 |
250 |
200 |
250 |
200 |
|
Rated toque taug kev |
mm |
8 |
4 |
10 |
6 |
10 |
6 |
|
Number of trips (taw ceev) |
s.p.m |
45 |
70 |
40 |
60 |
40 |
60 |
|
Qhov siab pwm siab tshaj plaws |
mm |
320 |
350 |
325 |
350 |
365 |
390 |
|
Kev kho qhov siab ntawm pwm |
mm |
80 |
100 |
110 |
|||
|
Tsawg workbench loj |
mm |
750×700×105 |
800×750×115 |
800×800×115 |
|||
|
Hauv qab nto ntawm slider |
mm |
750×450 |
780×500 |
800×650 |
|||
|
Muab tso rau hauv lub worktable |
mm |
Ø250 |
Ø320 |
Ø320 |
|||
|
Kov qhov |
mm |
Ø75 |
Ø75 |
Ø75 |
|||
|
Main lub cev muaj zog |
KW × P |
11×4 |
18.5×4 |
18.5×4 |
|||
|
Rub pas nrig |
mm |
M30×550 |
M30×620 |
M36×600 |
|||
|
Siv cua siab |
MPa |
0.5-0.7 |
0.5-0.7 |
0.5-0.7 |
|||
|
Punching tshuab (pem hauv ntej thiab nram qab x sab laug thiab sab xis x qhov siab) |
mm |
1742×1623×3400 |
2030×1886×3845 |
2290×1891×4032 |
|||
|
Punch hnyav |
Ton |
10 |
14 |
16 |
|||
|
DPS-250W |
DPS-315W |
DPS-400W |
DPS-500W |
||||
|
2500 |
3150 |
4000 |
5000 |
||||
|
V |
H |
V |
H |
V |
H |
V |
H |
|
250 |
200 |
250 |
200 |
250 |
200 |
250 |
200 |
|
15 |
8 |
15 |
8 |
15 |
8 |
15 |
8 |
|
40 |
60 |
40 |
60 |
40 |
60 |
40 |
55 |
|
400 |
425 |
420 |
445 |
425 |
445 |
450 |
475 |
|
120 |
120 |
150 |
150 |
||||
|
900×850×135 |
950×900×155 |
1100×1000×175 |
1200×1100×195 |
||||
|
920×750 |
970×800 |
1100×800 |
1200×900 |
||||
|
Ø320 |
Ø320 |
Ø320 |
Ø350 |
||||
|
Ø75 |
Ø75 |
Ø75 |
Ø100 |
||||
|
22×4 |
30×4 |
45×4 |
55×4 |
||||
|
M36×650 |
M36×700 |
M36×900 |
M42×950 |
||||
|
MPa |
0.5-0.7 |
0.5-0.7 |
0.5-0.7 |
||||
|
2798×2086×4150 |
2819×2156×4670 |
3259×2226×5027 |
3527×2630×5600 |
||||
|
19 |
25 |
32 |
38 |
||||
|
Txheem accessories |
Xaiv configuration |
|
Pneumatic clutch |
Pneumatic cushion ntaus ntawv |
|
kov npo |
Ko taw hloov |
|
Ua ntej load counter, pre break txee |
Zawv zawg thaiv sab sauv pub khoom siv |
|
Hydraulic overload tiv thaiv ntaus ntawv |
Shockproof ko taw |
|
Kev kuaj pom tsis raug |
Photoelectric tiv thaiv ntaus ntawv |
|
Lub qhov (socket) fais fab mov |
Lub tshuab pub mis (cua, tshuab, thiab NC hom) |
|
Electric butter lubrication ntaus ntawv |
Khoom khib |
|
Hluav taws xob slider hloov khoom siv |
Leveling tshuab |
|
Electronic high modulus zaub |
tus tswj |
|
Sliding block thiab pwm ntsuas ntsuas |
Pwm teeb pom kev zoo |
|
Electronic rotary cam hloov |
|
|
Crankshaft angle qhia |
|
|
Zaus converter |
|
|
Cov txee |
|
|
Cua qhov chaw connector |
|
|
Cov khoom siv tiv thaiv tsev thib ob |
|
|
phau ntawv qhia |
Servo hluav taws xob lub tog raj kheej, raws li cov cuab yeej tswj xyuas qhov tseeb, ua lub luag haujlwm tseem ceeb hauv kev lag luam niaj hnub automation. Kev saib xyuas kom zoo yog qhov tseem ceeb los xyuas kom meej tias nws lub sijhawm ua haujlwm ruaj khov thiab txuas ntxiv nws lub neej kev pabcuam. Tsab ntawv xov xwm no yuav qhia txog yuav ua li cas thiaj li tswj tau cov servo fais fab lub tog raj kheej kom txhim kho lawv cov kev ua haujlwm zoo thiab txo qhov tshwm sim ntawm qhov tsis raug.
Kev tshuaj xyuas thiab tu tsis tu ncua
Thaum lub sijhawm siv mus ntev, servo lub tog raj kheej hluav taws xob tuaj yeem ua rau muaj plua plav thiab av, uas tuaj yeem cuam tshuam rau kev ua haujlwm ntawm cov khoom siv. Yog li ntawd, kev tshuaj xyuas thiab tu tsis tu ncua yog lub hauv paus ntawm kev saib xyuas. Nws raug nquahu kom ua ib qho kev tu sab nraud ntawm lub tog raj kheej hluav taws xob ib hlis ib zaug kom paub tseeb tias tsis muaj cov av txuam rau ntawm cov lus qhia, cov sliders, thiab lwm yam. Tsis tas li ntawd, tsis tu ncua xyuas cov xaim thiab cuam tshuam ntawm lub tog raj kheej hluav taws xob kom ntseeg tau tias tsis muaj qhov xoob lossis puas.
Lubrication thiab tu
Lubrication yog qhov tseem ceeb rau kev ua haujlwm du ntawm servo lub tog raj kheej hluav taws xob. Raws li qhov zaus ntawm kev siv thiab ua haujlwm ib puag ncig ntawm lub tog raj kheej hluav taws xob, tsis tu ncua ntxiv qhov tsim nyog ntawm cov roj lubricating kom txo tau kev sib txhuam thiab hnav. Feem ntau, nws raug pom zoo kom ua lubrication thiab tu txhua peb lub hlis. Thaum lubricating, nws yog ib qho tsim nyog yuav tau xaiv cov roj nplua nyeem uas tsim nyog thiab xyuas kom meej tias nws sib npaug rau cov lus qhia thiab cov ntsia hlau. Nyob rau tib lub sijhawm, tsis txhob lubrication ntau dhau los tiv thaiv cov roj nplua nyeem los ntawm kev cuam tshuam rau kev ua haujlwm ntawm cov khoom siv.
Saib xyuas cov xwm txheej ua haujlwm
Nws yog ib qho tseem ceeb kom tsis tu ncua saib xyuas kev ua haujlwm ntawm servo lub tog raj kheej hluav taws xob txhawm rau txhawm rau txheeb xyuas cov teeb meem tshwm sim raws sijhawm. Qhov kev ua haujlwm ntawm cov cuab yeej tuaj yeem txiav txim siab los ntawm kev saib xyuas tsis xws li tam sim no, qhov hluav taws xob, thiab qhov kub thiab txias. Thaum kuaj pom qhov xwm txheej txawv txav, xws li tam sim no ntau dhau lossis kub nce, lub tshuab yuav tsum tau nres tam sim rau kev tshuaj xyuas kom tsis txhob muaj kev puas tsuaj ntxiv. Tsis tas li ntawd, kev saib xyuas yuav tsum tau them rau lub suab hloov pauv ntawm lub tog raj kheej hluav taws xob thaum lub sijhawm ua haujlwm, vim tias lub suab nrov txawv txav yuav qhia tau tias hnav lossis xoob ntawm cov khoom sab hauv.
Tsis tu ncua calibration thiab debugging
Qhov tseeb ntawm servo lub tog raj kheej hluav taws xob tuaj yeem sib txawv tom qab siv mus ntev, yog li yuav tsum tau ua raws li kev ntsuas thiab kev debugging. Tshwj xeeb tshaj yog nyob rau hauv daim ntawv thov uas yuav tsum tau high precision, tsis tu ncua calibration yuav xyuas kom meej tias cov cuab yeej tseem nyob rau hauv kev pom zoo txhua lub sij hawm. Nws raug nquahu kom ua tiav kev tshuaj xyuas thiab kev debugging txhua rau lub hlis, thiab yog tias tsim nyog, ntiav cov neeg ua haujlwm tshaj lij los ua haujlwm kom ntseeg tau qhov raug thiab ruaj khov ntawm cov cuab yeej.
Kev saib xyuas kom zoo ntawm servo lub tog raj kheej hluav taws xob tuaj yeem tsis tsuas yog txuas ntxiv lawv lub neej kev pabcuam, tab sis kuj tseem txhim kho kev tsim khoom thiab txo qis qis. Los ntawm kev kuaj xyuas thiab tu, lubricating thiab tswj xyuas tsis tu ncua, saib xyuas cov haujlwm ua haujlwm, thiab ntsuas qhov ntsuas thiab debugging, nws tuaj yeem ua kom ntseeg tau tias servo lub tog raj kheej hluav taws xob yog qhov zoo. Txhua yam khoom siv hauv kev tsim khoom yuav tsum tau ua tib zoo saib xyuas, thiab servo lub tog raj kheej hluav taws xob tsis muaj qhov tshwj xeeb. Tsuas yog los ntawm kev ua haujlwm zoo ntawm kev saib xyuas txhua hnub tuaj yeem ua nws qhov kev ua tau zoo tshaj plaws thiab txhim khu kev ntseeg tau muab rau kev tsim khoom.
